这里我们分析webots中的基础控制器，这是由于这其中涉及到很多的基础控制函数（比如读取传感器数据、控制电机），通过了解这些基础控制器中的操作函数，为我们后面介绍ROS控制做基础。

这里以webots自带的机器人 e-puck 的控制器为例，介绍webots控制器的编写规范。

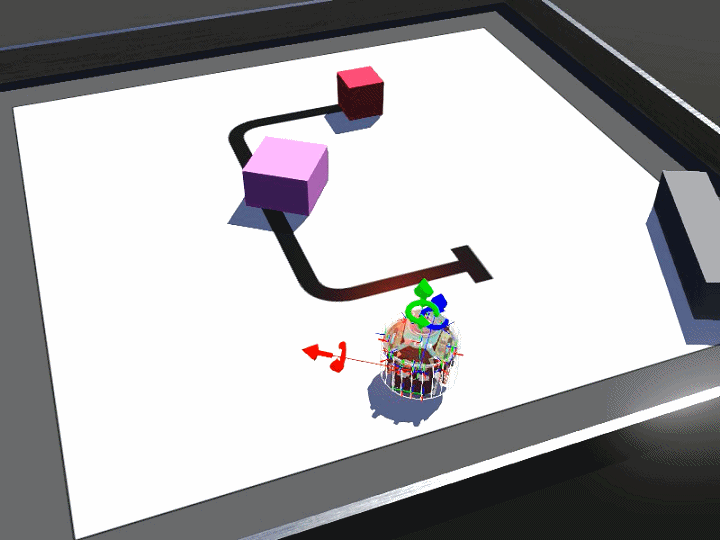

首先我们打开 e-puck_line.wbt 模型文件，选择自带的避障控制器，如下图：

在这里插入图片描述

1 控制器结构

webots的控制器和C语言的语法非常相似，入口地址为函数main()函数，webots访问机器人上的每一个传感器（距离传感器）和执行器（电机）都是依靠操作句柄实现的，操作句柄可以被理解为一个结构体，每一个传感器都对应一个操作句柄，在创建这个操作句柄的时候需要输入这个传感器的名称。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
/* include headers */
#include <stdio.h>
#include <stdlib.h>
#include <string.h>

#include <webots/device.h>
#include <webots/distance_sensor.h>
#include <webots/led.h>
#include <webots/motor.h>
#include <webots/nodes.h>
#include <webots/robot.h>

/* Device stuff */
#define DISTANCE_SENSORS_NUMBER 8
static WbDeviceTag distance_sensors[DISTANCE_SENSORS_NUMBER];
static double distance_sensors_values[DISTANCE_SENSORS_NUMBER];
static const char *distance_sensors_names[DISTANCE_SENSORS_NUMBER] = {"ps0", "ps1", "ps2", "ps3", "ps4", "ps5", "ps6", "ps7"};

#define GROUND_SENSORS_NUMBER 3
static WbDeviceTag ground_sensors[GROUND_SENSORS_NUMBER];
static double ground_sensors_values[GROUND_SENSORS_NUMBER] = {0.0, 0.0, 0.0};
static const char *ground_sensors_names[GROUND_SENSORS_NUMBER] = {"gs0", "gs1", "gs2"};

#define LEDS_NUMBER 10
static WbDeviceTag leds[LEDS_NUMBER];
static bool leds_values[LEDS_NUMBER];
static const char *leds_names[LEDS_NUMBER] = {"led0", "led1", "led2", "led3", "led4", "led5", "led6", "led7", "led8", "led9"};

static WbDeviceTag left_motor, right_motor;

#define LEFT 0
#define RIGHT 1
#define MAX_SPEED 6.28
static double speeds[2];

/* Breitenberg stuff */
static double weights[DISTANCE_SENSORS_NUMBER][2] = {{-1.3, -1.0}, {-1.3, -1.0}, {-0.5, 0.5}, {0.0, 0.0},
                                                     {0.0, 0.0},   {0.05, -0.5}, {-0.75, 0},  {-0.75, 0}};
static double offsets[2] = {0.5 * MAX_SPEED, 0.5 * MAX_SPEED};

static int get_time_step() {
  static int time_step = -1;
  if (time_step == -1)
    time_step = (int)wb_robot_get_basic_time_step();
  return time_step;
}

static void step() {
  if (wb_robot_step(get_time_step()) == -1) {
    wb_robot_cleanup();
    exit(EXIT_SUCCESS);
  }
}

static void passive_wait(double sec) {
  double start_time = wb_robot_get_time();
  do {
    step();
  } while (start_time + sec > wb_robot_get_time());
}

static void init_devices() {
  int i;
  for (i = 0; i < DISTANCE_SENSORS_NUMBER; i++) {
    distance_sensors[i] = wb_robot_get_device(distance_sensors_names[i]);
    wb_distance_sensor_enable(distance_sensors[i], get_time_step());
  }
  for (i = 0; i < LEDS_NUMBER; i++)
    leds[i] = wb_robot_get_device(leds_names[i]);

  // silently initialize the ground sensors if they exists
  for (i = 0; i < GROUND_SENSORS_NUMBER; i++)
    ground_sensors[i] = (WbDeviceTag)0;
  int ndevices = wb_robot_get_number_of_devices();
  for (i = 0; i < ndevices; i++) {
    WbDeviceTag dtag = wb_robot_get_device_by_index(i);
    const char *dname = wb_device_get_name(dtag);
    WbNodeType dtype = wb_device_get_node_type(dtag);
    if (dtype == WB_NODE_DISTANCE_SENSOR && strlen(dname) == 3 && dname[0] == 'g' && dname[1] == 's') {
      int id = dname[2] - '0';
      if (id >= 0 && id < GROUND_SENSORS_NUMBER) {
        ground_sensors[id] = wb_robot_get_device(ground_sensors_names[id]);
        wb_distance_sensor_enable(ground_sensors[id], get_time_step());
      }
    }
  }

  // get a handler to the motors and set target position to infinity (speed control).
  left_motor = wb_robot_get_device("left wheel motor");
  right_motor = wb_robot_get_device("right wheel motor");
  wb_motor_set_position(left_motor, INFINITY);
  wb_motor_set_position(right_motor, INFINITY);
  wb_motor_set_velocity(left_motor, 0.0);
  wb_motor_set_velocity(right_motor, 0.0);

  step();
}

static void reset_actuator_values() {
  int i;
  for (i = 0; i < 2; i++)
    speeds[i] = 0.0;
  for (i = 0; i < LEDS_NUMBER; i++)
    leds_values[i] = false;
}

static void get_sensor_input() {
  int i;
  for (i = 0; i < DISTANCE_SENSORS_NUMBER; i++) {
    distance_sensors_values[i] = wb_distance_sensor_get_value(distance_sensors[i]);

    // scale the data in order to have a value between 0.0 and 1.0
    // 1.0 representing something to avoid, 0.0 representing nothing to avoid
    distance_sensors_values[i] /= 4096;
  }

  for (i = 0; i < GROUND_SENSORS_NUMBER; i++) {
    if (ground_sensors[i])
      ground_sensors_values[i] = wb_distance_sensor_get_value(ground_sensors[i]);
  }
}

static bool cliff_detected() {
  int i;
  for (i = 0; i < GROUND_SENSORS_NUMBER; i++) {
    if (!ground_sensors[i])
      return false;
    if (ground_sensors_values[i] < 500.0)
      return true;
  }
  return false;
}

static void set_actuators() {
  int i;
  for (i = 0; i < LEDS_NUMBER; i++)
    wb_led_set(leds[i], leds_values[i]);
  wb_motor_set_velocity(left_motor, speeds[LEFT]);
  wb_motor_set_velocity(right_motor, speeds[RIGHT]);
}

static void blink_leds() {
  static int counter = 0;
  counter++;
  leds_values[(counter / 10) % LEDS_NUMBER] = true;
}

static void run_braitenberg() {
  int i, j;
  for (i = 0; i < 2; i++) {
    speeds[i] = 0.0;
    for (j = 0; j < DISTANCE_SENSORS_NUMBER; j++)
      speeds[i] += distance_sensors_values[j] * weights[j][i];

    speeds[i] = offsets[i] + speeds[i] * MAX_SPEED;
    if (speeds[i] > MAX_SPEED)
      speeds[i] = MAX_SPEED;
    else if (speeds[i] < -MAX_SPEED)
      speeds[i] = -MAX_SPEED;
  }
}

static void go_backwards() {
  wb_motor_set_velocity(left_motor, -MAX_SPEED);
  wb_motor_set_velocity(right_motor, -MAX_SPEED);
  passive_wait(0.2);
}

static void turn_left() {
  wb_motor_set_velocity(left_motor, -MAX_SPEED);
  wb_motor_set_velocity(right_motor, MAX_SPEED);
  passive_wait(0.2);
}

int main(int argc, char **argv) {
  wb_robot_init();

  printf("Default controller of the e-puck robot started...\n");

  init_devices();

  while (true) {
    reset_actuator_values();
    get_sensor_input();
    blink_leds();
    if (cliff_detected())
    {
      go_backwards();
      turn_left();
    }
    else
    {
      run_braitenberg();
    }
    set_actuators();
    step();
  };

  return EXIT_SUCCESS;
}

2 操作函数

首先我们来看看上面文件中的主要操作函数

2.1 初始化函数

webots的初始化函数为：

1
wb_robot_init();

2.2 距离传感器操作函数

在这里插入图片描述
1、e-puck有着8个距离传感器名字分别为（“ps0”, “ps1”, “ps2”, “ps3”, “ps4”, “ps5”, “ps6”, “ps7”）

1
2
3
4
#define DISTANCE_SENSORS_NUMBER 8
static WbDeviceTag distance_sensors[DISTANCE_SENSORS_NUMBER]; // 申明数组
static double distance_sensors_values[DISTANCE_SENSORS_NUMBER];
static const char *distance_sensors_names[DISTANCE_SENSORS_NUMBER] = {"ps0", "ps1", "ps2", "ps3", "ps4", "ps5", "ps6", "ps7"};

2、构建操作句柄，使能传感器

1
2
3
4
5
 int i;
  for (i = 0; i < DISTANCE_SENSORS_NUMBER; i++) {
    distance_sensors[i] = wb_robot_get_device(distance_sensors_names[i]);
    wb_distance_sensor_enable(distance_sensors[i], get_time_step());
  }

3、读取传感器的数据

1
2
3
4
5
6
7
8
  int i;
  for (i = 0; i < DISTANCE_SENSORS_NUMBER; i++) {
    distance_sensors_values[i] = wb_distance_sensor_get_value(distance_sensors[i]);

    // scale the data in order to have a value between 0.0 and 1.0
    // 1.0 representing something to avoid, 0.0 representing nothing to avoid
    distance_sensors_values[i] /= 4096;
  }

2.3 ground_sensors 操作函数

1、初始化变量

1
2
3
4
#define GROUND_SENSORS_NUMBER 3
static WbDeviceTag ground_sensors[GROUND_SENSORS_NUMBER];
static double ground_sensors_values[GROUND_SENSORS_NUMBER] = {0.0, 0.0, 0.0};
static const char *ground_sensors_names[GROUND_SENSORS_NUMBER] = {"gs0", "gs1", "gs2"};

2、构建操作句柄，使能传感器

1
2
 ground_sensors[id] = wb_robot_get_device(ground_sensors_names[id]);
 wb_distance_sensor_enable(ground_sensors[id], get_time_step());

3、读取传感器的数据

1
2
3
4
for (i = 0; i < GROUND_SENSORS_NUMBER; i++) {
    if (ground_sensors[i])
      ground_sensors_values[i] = wb_distance_sensor_get_value(ground_sensors[i]);
  }

2.4 激光雷达传感器操作函数

2.5 LED灯作函数

1、声明变量

1
2
3
4
#define LEDS_NUMBER 10
static WbDeviceTag leds[LEDS_NUMBER];
static bool leds_values[LEDS_NUMBER];
static const char *leds_names[LEDS_NUMBER] = {"led0", "led1", "led2", "led3", "led4", "led5", "led6", "led7", "led8", "led9"};

2、构建操作句柄

1
2
  for (i = 0; i < LEDS_NUMBER; i++)
    leds[i] = wb_robot_get_device(leds_names[i]);

3、设置LED的值

1
2
  for (i = 0; i < LEDS_NUMBER; i++)
    wb_led_set(leds[i], leds_values[i]);

2.7 电机操作函数

1、获取电机操作句柄。"left wheel motor"表示电机的名称

1
2
  left_motor = wb_robot_get_device("left wheel motor");
  right_motor = wb_robot_get_device("right wheel motor");

2、设置电机行进的位移

1
2
  wb_motor_set_position(left_motor, INFINITY);
  wb_motor_set_position(right_motor, INFINITY);

3、设置电机速度

1
2
  wb_motor_set_velocity(left_motor, 0.0);
  wb_motor_set_velocity(right_motor, 0.0);

从上面的形式来看，每一个传感器操作都会经历声明变量、构建操作句柄、获取传感器值三个操作，其中获取操作句柄都是使用的 wb_robot_get_device（） 这个函数实现的。

3 DEMO

下面是我在【2】上修改到的一个控制，读取距离传感器的值实现小车避障，同时小车身上的灯会循环点亮。
在这里插入图片描述
以下是c文件的控制器代码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
#include <webots/robot.h>
#include <webots/distance_sensor.h>
#include <webots/motor.h>
#include <webots/led.h>
// time in [ms] of a simulation step
#define TIME_STEP 64

#define MAX_SPEED 6.28

/* Device stuff */
#define DISTANCE_SENSORS_NUMBER 8
static WbDeviceTag distance_sensors[DISTANCE_SENSORS_NUMBER];
static double distance_sensors_values[DISTANCE_SENSORS_NUMBER];
static const char *distance_sensors_names[DISTANCE_SENSORS_NUMBER] = {"ps0", "ps1", "ps2", "ps3", "ps4", "ps5", "ps6", "ps7"};

#define LEDS_NUMBER 10
static WbDeviceTag leds[LEDS_NUMBER];
static bool leds_values[LEDS_NUMBER];
static const char *leds_names[LEDS_NUMBER] = {"led0", "led1", "led2", "led3", "led4", "led5", "led6", "led7", "led8", "led9"};


static int counter = 0;
// entry point of the controller
int main(int argc, char **argv) {
  // initialize the Webots API
  wb_robot_init();

  // internal variables
  int i;
  for (i = 0; i < DISTANCE_SENSORS_NUMBER; i++) {
    distance_sensors[i] = wb_robot_get_device(distance_sensors_names[i]);
    wb_distance_sensor_enable(distance_sensors[i], TIME_STEP);
  }


    for (i = 0; i < LEDS_NUMBER; i++)
    leds[i] = wb_robot_get_device(leds_names[i]);

  WbDeviceTag left_motor = wb_robot_get_device("left wheel motor");
  WbDeviceTag right_motor = wb_robot_get_device("right wheel motor");
  wb_motor_set_position(left_motor, INFINITY);
  wb_motor_set_position(right_motor, INFINITY);
  wb_motor_set_velocity(left_motor, 0.0);
  wb_motor_set_velocity(right_motor, 0.0);

  // feedback loop: step simulation until an exit event is received
  while (wb_robot_step(TIME_STEP) != -1) {
    // read sensors outputs

    for (i = 0; i < DISTANCE_SENSORS_NUMBER ; i++)
      distance_sensors_values[i] = wb_distance_sensor_get_value(distance_sensors[i]);

    // detect obstacles
    bool right_obstacle =
      distance_sensors_values[0] > 80.0 ||
      distance_sensors_values[1] > 80.0 ||
      distance_sensors_values[2] > 80.0;
    bool left_obstacle =
      distance_sensors_values[5] > 80.0 ||
      distance_sensors_values[6] > 80.0 ||
      distance_sensors_values[7] > 80.0;

    // initialize motor speeds at 50% of MAX_SPEED.
    double left_speed  = 0.5 * MAX_SPEED;
    double right_speed = 0.5 * MAX_SPEED;

    // modify speeds according to obstacles
    if (left_obstacle) {
      // turn right
      left_speed  += 0.5 * MAX_SPEED;
      right_speed -= 0.5 * MAX_SPEED;
    }
    else if (right_obstacle) {
      // turn left
      left_speed  -= 0.5 * MAX_SPEED;
      right_speed += 0.5 * MAX_SPEED;
    }


  for (i = 0; i < LEDS_NUMBER; i++)
    leds_values[i] = false;
  counter++;
  leds_values[(counter / 10) % LEDS_NUMBER] = true;

  for (i = 0; i < LEDS_NUMBER; i++)
    wb_led_set(leds[i], leds_values[i]);

    // write actuators inputs
    wb_motor_set_velocity(left_motor, left_speed);
    wb_motor_set_velocity(right_motor, right_speed);
  }

  // cleanup the Webots API
  wb_robot_cleanup();
  return 0; //EXIT_SUCCESS
}
